Purpose: Packing and stacking
of butter packages |
|
| |
|
|
| |
Function: |
|
| |

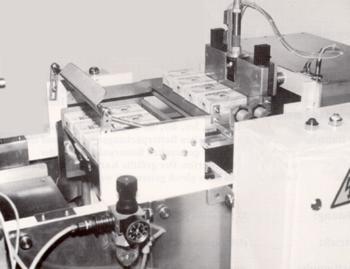

The butter packages are led to the machine via a conveyor belt.
There they are pushed on a sliding plate and placed and stacked on lifting
plate. When the specified layers -one, two or three layers- have been
reached, the lifting cylinder lowers and the stacked butter packages are
pushed onta a discharge plate. The box is put over the stack of butter
packages and is then discharged. The filled box is now lowered onto a
roller conveyor belt and can now be stamped. |
|
| |
|
|
| |
| Output: |
3-5 boxes depending on the container |
| Drive: |
Electro-pneumatic |
| Triggering: |
By means of proximity switch |
| Compressed air connection: |
Hose nozzle 6 mm |
| Operating pressure: |
6 bar. |
|
|
| |
The vario layers can be adjusted by means of a selection switch |
|
| |
|
|
| |
Dimensions: |
|
| |
|
|
| |
| Width ca. |
900 mm
|
|
| Length ca. |
1900 mm
|
|
| Height ca. |
1250 mm
|
|
|
|
| |
|
|
