Automatic bandage clasp setting machine (reg. pat. Off.)

This new development will simplify the work for women in the
bandage industry. Furthermore time can be saved leading to
a reduction of the production costs.

A woman usually takes the clasp from a tangled mess and
sets it on the provided bandage. Separating as well as sprea-
ding out setting of the clasps is a timecosuming job and a there
is a high risk of injury due to the projecting hooks of the clasps

The automatic bandage clasp setting machine described below
takes over this work.

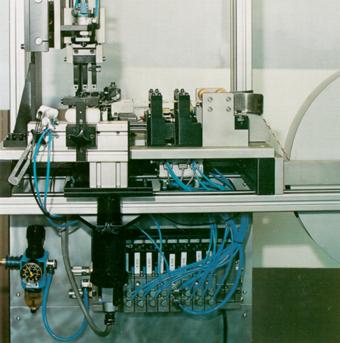

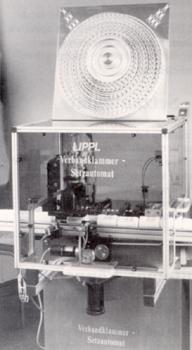

The clasps on a belt are fed to the setting machine from a reel.
During insertion or supply of a bandage the start is triggered by
means of a light barrier. The clasps are taken off of the belt,
clamped by grippers and set on the bandage. The grippers
release the clasps and press them onto the bandage. With
the next supply of the bandage the cycle repeats itself. The
automatic clasp setting machine can set one, two or three

clasps. The number of claspscan easily be varied from one to three during production.

You can carry out production in a rational manner and reduce costs using this automatic
bandage clasp setting machine.

Due its maneuverability, the automatic bandage clasp setting machine is ready for operation
at any location. Wether it is to be manually fed or integrated into automatic winding machines
or wether it is to be used as a connection unit between an automatic winding machine and an
automatic cellophane machine, it is always ready for service at any location and at any time

Technical data:

Application:
Setting of the elastic clasps from a belt onto the bandage; feeding and removal of the
bandage is carried out manually or by means of an automatic supply and discharge
of the bandage.

Output:
45-52 bandages per minute
45-156 clasps per minute

Drive:
Elektric 220 V, 50-60 Hz
Pneumatic 6 bar

Dimension of the bandage:
Diameter: approx. 20-80 mm
Length: approx. 40-250 mm and longer

Machine dimensions without conveyor belt:
Length: approx. 1200 mm
Width: approx. 820 mm
Hight: approx. 1450 mm
Weight: approx. ca. 120 kg

Conveyor belt for automatic supply and discharge:
Alternatively from 1000 - 2000 mm in length, infinitely adjustable from 2m to 13m per minute.

For this machine Lippl was honoured with the Bavarian Price of
Innovation on the occasion of the International Trade Fair in Munich 1993.
