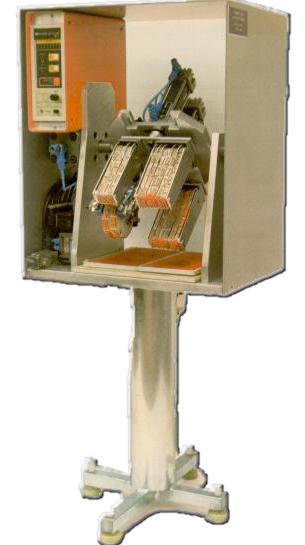

Stamping Machine for imprinting and marking packaging materials
With this new version of the stamping machine
shown on this site
- manufacturing costs are rduced,
- the process of imprinting and marking
packaging materials is greatly facilitated.
At the end of the packing line, the cartons are usually
marked with numbers and other information (manu-
facturing date, shelf life, expiration date, consecutive
numbers, etc.). Previously, the printing of all this
information had to be performed manually
in time-consuming, unproductive operations.
This function is now carried out by the machine. It
- saves energy,
- is non-polluting,
- operates quietly and
- involves low operating costs.
With this device (tripped by mechanical or other sensors
or manually), the necessary data can be applied to the
packaging materials in one single operation at any point
of the conveyer.
This machine not only represents progress in imprinting
technology, but also contributes considerably to making
the working place more humane.
What materials can be stamped ?
We stamp wood, paper, styrofoam, aluminium, sheet metal, synthetic materials (pre-treated), sacks, empty
or filled packaging materials.
What can be stamped ?
Dates, consecutive numbers, control numbers, texts, logos, even Arabic or Chinese print, etc.
Operation is clean and trouble-free.
The stamping machine is easily operated, even by untrained personal.
The stamping plates can be changed in seconds without screws or adhesives-magnetic strips are used.
Larger text plates can also be used.
Technical Data: "TYPE S 1"
Application:
stamping of cardboard and similar materials
Capacity:
1,200 cartons per hour maximum
Drive:
electro-pneumatic
Starting impulse:
by means of mechanical or other sensors or manually
Compressed air connection on machine:
hose nipple for 4 mm hose
Operating pressure:
3-5 bar
Dimensions:
Length ca. 450 mm
Width ca.. 450 mm
Hight ca. 1200 - 1500 mm
Weigth ca. 50 kg
